    AS NZS Heavy Hex HDG YZP ZP BLACK M16-M36 Carbon Steel Nuts

    Ask Lasest Price
    Brand Name : QBH
    Model Number : M16-M36
    Certification : ISO9001
    Price : Negotiation
    Supply Ability : 500TON/MONTH
    Delivery Time : 30days
    • Product Details
    • Company Profile

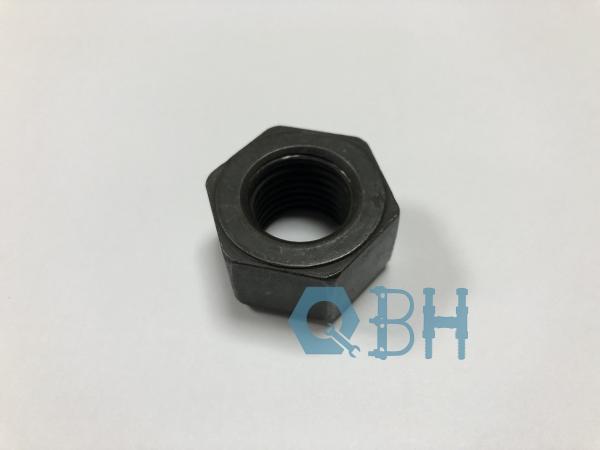

    AS NZS Heavy Hex HDG YZP ZP BLACK M16-M36 Carbon Steel Nuts

    AS NZS Heavy Hex HDG YZP ZP BLACK M16-M36 Carbon Steel Nuts

    Process flow

    Cold forging

    Annealing treatment(if need) ➨ wiredrawing ➨ clod forging ➨ tapping ➨make heat treatment(if need)Finish Packing

    Hot forging

    Cutting material hot forging turning tapping make heat treatment(if need)Finish Packing

    Specification

    Thread Size
    D
    M16 M20 (M22) M24 (M27) M30 M36
    P Thread Pitch
    s max
    min
    e max
    min
    m max
    min
    dw min
    c max
    min
    da max
    min
    2 2.5 2.5 3 3 3.5 4
    27 34 36 41 46 50 60
    26.16 33 35 40 45 49 58.8
    31.2 39.26 41.6 47.3 53.1 57.7 69.3
    29.56 37.29 39.55 45.2 50.85 55.37 66.44
    17.1 20.7 23.6 24.2 27.6 30.7 36.6
    16.4 19.4 22.3 22.9 26.3 29.1 35
    24.9 31.4 33.3 38 42.8 46.5 55.9
    0.8 0.8 0.8 0.8 0.8 0.8 0.8
    0.4 0.4 0.4 0.4 0.4 0.4 0.4
    17.3 21.6 23.8 25.9 29.2 32.4 38.9
    16 20 22 24 27 30 36

    Product Grade

    Class 8 Class 10

    AS NZS Heavy Hex HDG YZP ZP BLACK M16-M36 Carbon Steel Nuts

    Materials and Chemical compstition

    1045

    CHEMICAL COMPOSI %
    C Si Mn P S Cr Ni Cu
    0.45 0.23 0.58 0.014 0.006 0.057 0.008 0.016

    40CR

    CHEMICAL COMPOSI %
    C Si Mn P S Cr Ni Cu
    0.4 0.21 0.54 0.015 0.008 0.95 0.02 0.02

    35CRMO

    CHEMICAL COMPOSI %
    C Si Mn P S Cr Ni Cu Mo
    0.35 0.22 0.59 0.01 0.003 0.93 0.01 0.01 0.21

    42CRMO

    CHEMICAL COMPOSI %
    C Si Mn P S Cr Ni Cu Mo
    0.42 0.27 0.92 0.013 0.004 1.01 0.03 0.04 0.2

    Finish

    PLAIN ZP YZP BLACK HDG DACROMET GEOMET CHROME NICKEL AND SO ON

    PACKING

    QBH BULK

    20-25KG/CTN,36CTNS/PALLET

    20-30KG/BAGS,36BAGS/PALLET

    ONE TON/BOXES

    50KG/ IRON DRUM,12 IRON DRUMS/PALLET

    QBH SMALL PACKING

    Packing in small boxes according to customer’s requirements

    Packing in plastic bag according to customer’s requirements

    QBH PALLET TYPE

    SOLID WOOD FUMIGATION PALLET

    EURO Pallet

    THREE SPLINT PALLET

    WOODEN BOX

    MECHANICAL PROPERTY

    TESTING STANDARD:DIN267- 4 OR ISO898-2

    SIZE CLASS
    04 05
    PROOF LOAD
    N/mm2

    HV
    NUT PROOF LOAD
    N/mm2

    HV
    NUT
    min max HEAT TREATMENT TYPE min max HEAT TREATMENT TYPE
    / M4 380 188 302 NO THIN NUT 500 272 353 YES THIN NUT
    M4 M7
    M7 M10
    M10 M16
    M16 M39
    SIZE CLASS
    4 5
    PROOF LOAD
    N/mm2
    HV NUT PROOF LOAD
    N/mm2
    HV NUT
    min max HEAT TREATMENT TYPE min max HEAT TREATMENT TYPE
    / M4 / / / / / 520 130 302 NO 1
    M4 M7 580
    M7 M10 590
    M10 M16 610
    M16 M39 510 117 302 NO 1 630 146
    SIZE CLASS
    6 8
    PROOF LOAD
    N/mm2
    HV NUT PROOF LOAD
    N/mm2
    HV NUT
    min max HEAT TREATMENT TYPE min max HEAT TREATMENT TYPE
    / M4 600 150 302 NO 1 800 180 302 NO 1
    M4 M7 670 855 200
    M7 M10 680 870
    M10 M16 700 880
    M16 M39 720 170 920 233 353 YES
    SIZE CLASS
    8 9
    PROOF LOAD
    N/mm2
    HV NUT PROOF LOAD
    N/mm2
    HV NUT
    min max HEAT TREATMENT TYPE min max HEAT TREATMENT TYPE
    / M4 / / / / / 900 170 302 NO 2
    M4 M7 915 188
    M7 M10 940
    M10 M16 950
    M16 M39 890 180 302 NO 2 920
    SIZE CLASS
    10 12
    PROOF LOAD
    N/mm2
    HV NUT PROOF LOAD
    N/mm2
    HV NUT
    min max HEAT TREATMENT TYPE min max HEAT TREATMENT TYPE
    / M4 1040 272 353 YES 1 1140 295 353 YES 1
    M4 M7 1040 1140
    M7 M10 1040 1140
    M10 M16 1050 1140
    M16 M39 1060 / / / / /
    SIZE CLASS
    12
    PROOF LOAD
    N/mm2
    HV NUT
    min max HEAT TREATMENT TYPE
    / M4 1150 272 353 YES 2
    M4 M7 1150
    M7 M10 1160
    M10 M16 1190
    M16 M39 1200

    The advantages of QBH

    • QBH brand sales to the main quality assurance.
    • Years of export trade management, excellent service, word-of-mouth guarantee.
    • By working with TUV,escort for quality.
    • Customization of non-standard parts can be made according to customer's requirements and drawings.
    • For quality customers,we can provide a certain credit period.
