ISO 7380 Hexagon Socket Button Head Screws Class 10.9 Black
ISO 7380 - Hexagon Socket Button Head Screws Class 10.9 Black
Socket button head cap screws ISO 7380 are not intended for high
strength application. The purpose of producing them with a strength of the property class
10.9 is to increase the wear resistance of the sockets.
ISO 7380 : 2004 Hexagon socket button head screws,which was
prepared by ISO/TC 2 ‘Fasteners’ of the International Organization
for
Standardization, has beenadopted by Technical Committee CEN/TC 185
‘Threaded and non-threaded mechanical fasteners andaccessories’,
the
Secretariat of which is held by DIN, as a European Standard.
Tightening Procedure:
Insert the key into the socket and apply the torque on the nut
while holding the key. Should however, the torque be applied on the screw itself it should
be reduced accordingly.
R.S. Torque = Recommended SeatingTorque

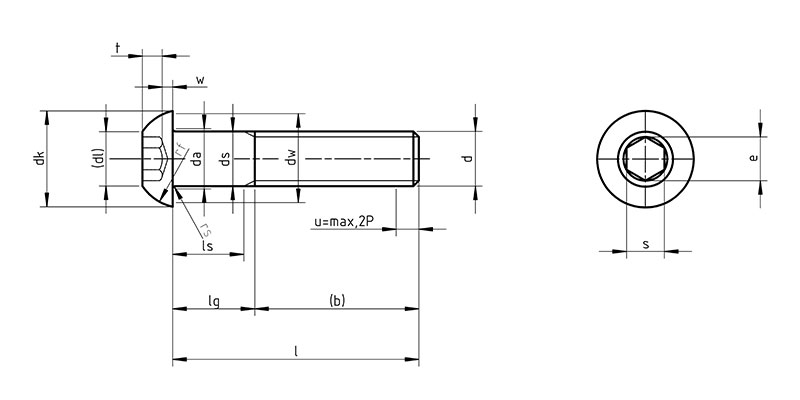

Legend:
l - length of bolt
d - the nominal diameter of the thread
k - head height
dk - head diameter
s - size of the internal hexagon
Makings:QBH
Steel: 8.8,10.9,12.9
Stainless: A2, A4
Plastic: -
Non Ferrous: -
Thread: 6g, 5g6g for strength 12.9
Notes:
-
Table according to ISO 7380-1:
| Thread d | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 |
| P | 0,5 | 0,7 | 0,8 | 1 | 1,25 | 1,5 | 1,75 | 2 |
| b | ref. | 18 | 20 | 22 | 24 | 28 | 32 | 36 | 44 |
| da | max. | 3,6 | 4,7 | 5,7 | 6,8 | 9,2 | 11,2 | 13,7 | 17,7 |
| dk | max. | 5,7 | 7,6 | 9,5 | 10,5 | 14 | 17,5 | 21 | 28 |
| min. | 5,4 | 7,24 | 9,14 | 10,07 | 13,57 | 17,07 | 20,48 | 27,48 |
| dL | ref. | 2,6 | 3,8 | 5 | 6 | 7,7 | 10 | 12 | 16 |
| ds | max. | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 16 |
| min. | 2,86 | 3,82 | 4,82 | 5,82 | 7,78 | 9,78 | 11,73 | 15,73 |
| dw | min. | 5 | 6,84 | 8,74 | 9,57 | 13,07 | 16,57 | 19,68 | 26,68 |
| e | min. | 2,303 | 2,873 | 3,443 | 4,583 | 5,723 | 6,863 | 9,149 | 11,429 |
| k | max. | 1,65 | 2,2 | 2,75 | 3,3 | 4,4 | 5,5 | 6,6 | 8,8 |
| min. | 1,4 | 1,95 | 2,5 | 3 | 4,1 | 5,2 | 6,24 | 8,44 |
| r1 | max. | 3,7 | 4,6 | 5,75 | 6,15 | 7,95 | 9,8 | 11,2 | 15,3 |
| min. | 3,3 | 4,2 | 5,25 | 5,65 | 7,45 | 9,2 | 10,5 | 14,5 |
| rs | min. | 0,1 | 0,2 | 0,2 | 0,25 | 0,4 | 0,4 | 0,6 | 0,6 |
| rt | min. | 0,3 | 0,4 | 0,45 | 0,5 | 0,7 | 0,7 | 1,1 | 1,1 |
| s | nom. | 2 | 2,5 | 3 | 4 | 5 | 6 | 8 | 10 |
| max. | 2,08 | 2,58 | 3,08 | 4,095 | 5,14 | 6,14 | 8,175 | 10,175 |
| min. | 2,02 | 2,52 | 3,02 | 4,02 | 5,02 | 6,02 | 8,025 | 10,025 |
| t | min. | 1,04 | 1,3 | 1,56 | 2,08 | 2,6 | 3,12 | 4,16 | 5,2 |
| w | min. | 0,2 | 0,3 | 0,38 | 0,74 | 1,05 | 1,45 | 1,63 | 2,25 |
Stainless steels can be divided into three groups of steel -
austenitic. ferritic and martensitic. Austenitic steel is by far
the
mostcommon type (>90% of commercial fasteners). The steel groups and
strength classes are designated by a four-digit
sequenceof letters and numbers (eg A2-70) as shown in the following table.
DIN EN ISO 3506 governs screws and nuts made
fromstainless steel.
Process flow
Cold forging
Annealing treatment(if need) ➨ wiredrawing ➨ clod forging ➨ thread rolling ➨make heat treatment(if need) ➨ Finish ➨ Packing
PACKING
QBH BULK
20-25KG/CTN,36CTNS/PALLET
20-30KG/BAGS,36BAGS/PALLET
ONE TON/BOXES
50KG/ IRON DRUM,12 IRON DRUMS/PALLET
QBH SMALL PACKING
Packing in small boxes according to customer’s requirements
Packing in plastic bag according to customer’s requirements
QBH PALLET TYPE
SOLID WOOD FUMIGATION PALLET
EURO Pallet
THREE SPLINT PALLET
WOODEN BOX
The advantages of QBH
- QBH brand sales to the main quality assurance.
- Years of export trade management, excellent service, word-of-mouth
guarantee.
- By working with TUV,escort for quality.
- Customization of non-standard parts can be made according to
customer's requirements and drawings.
- For quality customers,we can provide a certain credit period.
FAQ
1. How do you let me trust you.
Jiaxing City Qunbang Hardware Co.,ltd hs its own right of import
and export,QBH trademark in China,United States,European Union have
been registered.At the same time,you can also check the
registration information of our company in the China industry and
Commerce system.
2. How about your price.
We will be based on different markets,for different quality and
quantity,tailor-made prices for customers,in order to achieve
win-win goal.
3. How do you control your quality.
Incoming quality contral( IQC)→Process Quality control(PQC)→Output
quality control(OQC),and the random samples is sent to TUV for
testing.If the customer received the goods and found quality
problems,QBH company promises to be responsible for returning money
or replenishing the goods
4. Could you provide free samples?
For new customer, We can provide free samples for standard
fastener, But the clients will pay the express
charges. For old customer, We will send you free samples and pay
express charges by ourself.
5. Do you accept small order?
QBH company can accept small orders if we have them in
stock.Generally speaking,the stock probability of stainless steel
fasteners is higher than that of carbon steel fasteners.
6. How about your delivery time
What we pursure is the high efficiency movement pattern,the
stainless steel fastener delivery time about 15days,the carbon
steel fastener will it about 30days
7. What is your packing.
Usually 25KG/carbon,36CTNS on the pallets,or 20-30kg/Bags,then on
the pallet,QBH company personalized packagingis also available,like
10PCS/plastic bag or 10pcs/box,it can print some information
such as LOGO and pattern of customers.
8. What is your payment term
Normally,our terms of payment are TT and L/C,if we cooperate for a
long time,we can reach the point of mutual trust,and fully support
our customers to become bigger and stronger in the local market.
Not only in the price concessions,but also in the payment can also
be made on credit,Specific credit sales time needs to be negotiated
separately
